Collection
TRAFIC 216
Description:

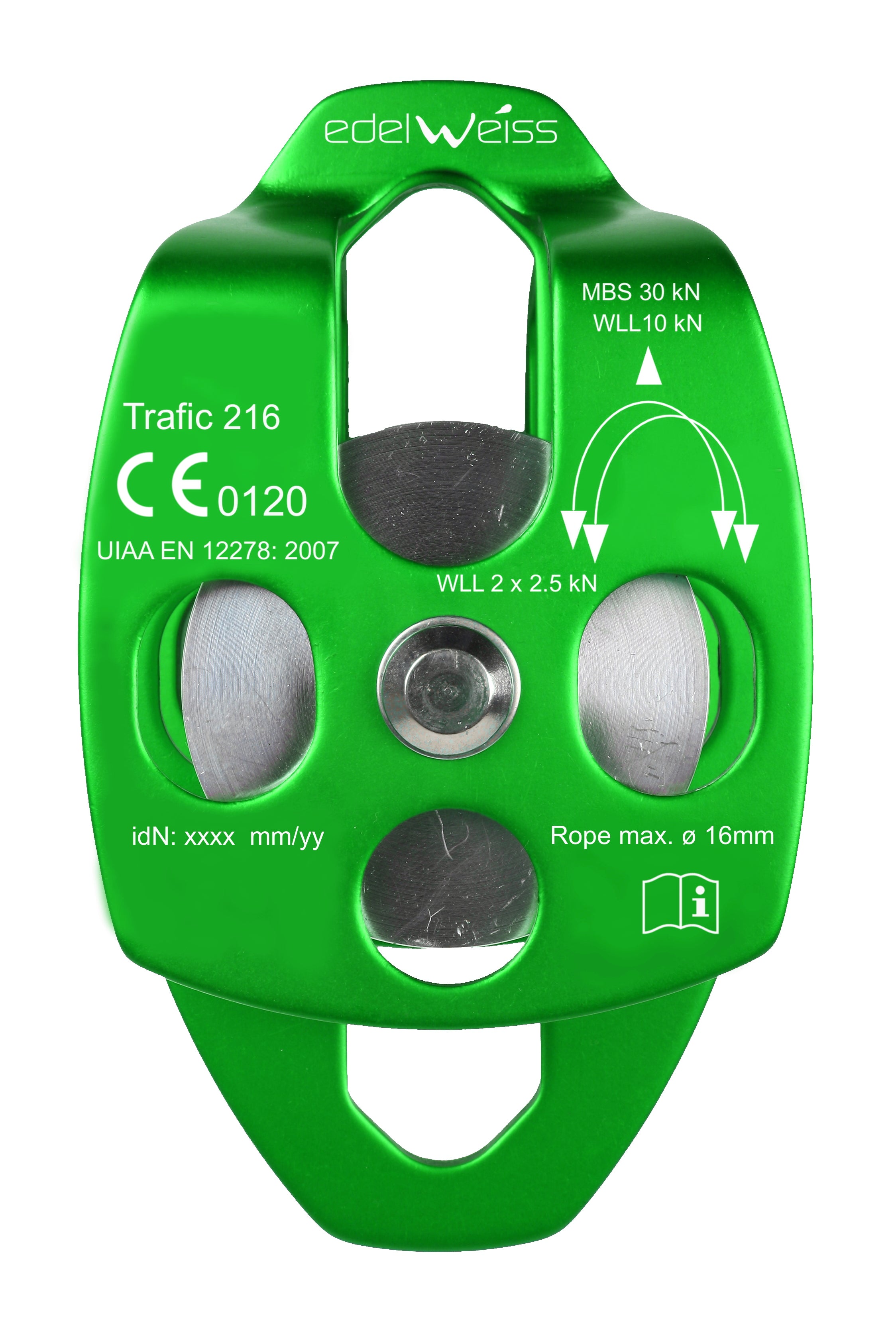

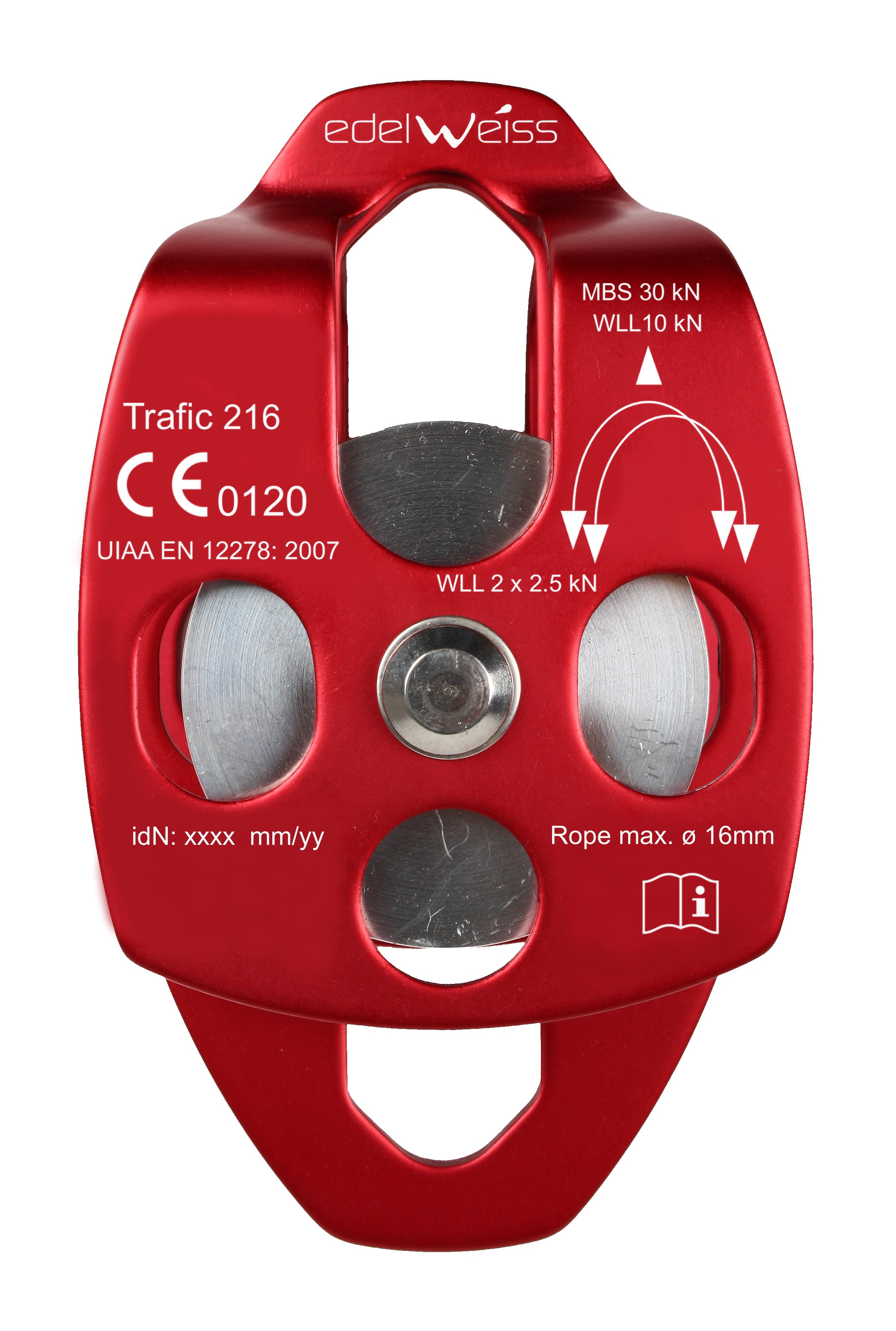

TRAFIC 216 is a mobile plate double pulley designed for hauling systems and heavy loads (brass bearings), it accepts ropes up to 16mm. Equiped with a bottom becket to create complex systems.
User guide: Pulleys
Declaration of conformity: DC_TRAFIC 216_2023
Specifications:
| Height | 143 mm |
|---|---|
| Width | 82 mm |
| Material | Light alloy |
| Sheave | 48 mm |
| Diameter | max. 16mm |
| Efficiency | N/A |
| Weight | 475 g |
| Breaking strength | 30 kN |
| Maximum workload | 2 x 2 x 2,5kN = 10kN |
| Standard | CE - EN 12278 - UIAA |
