Collection

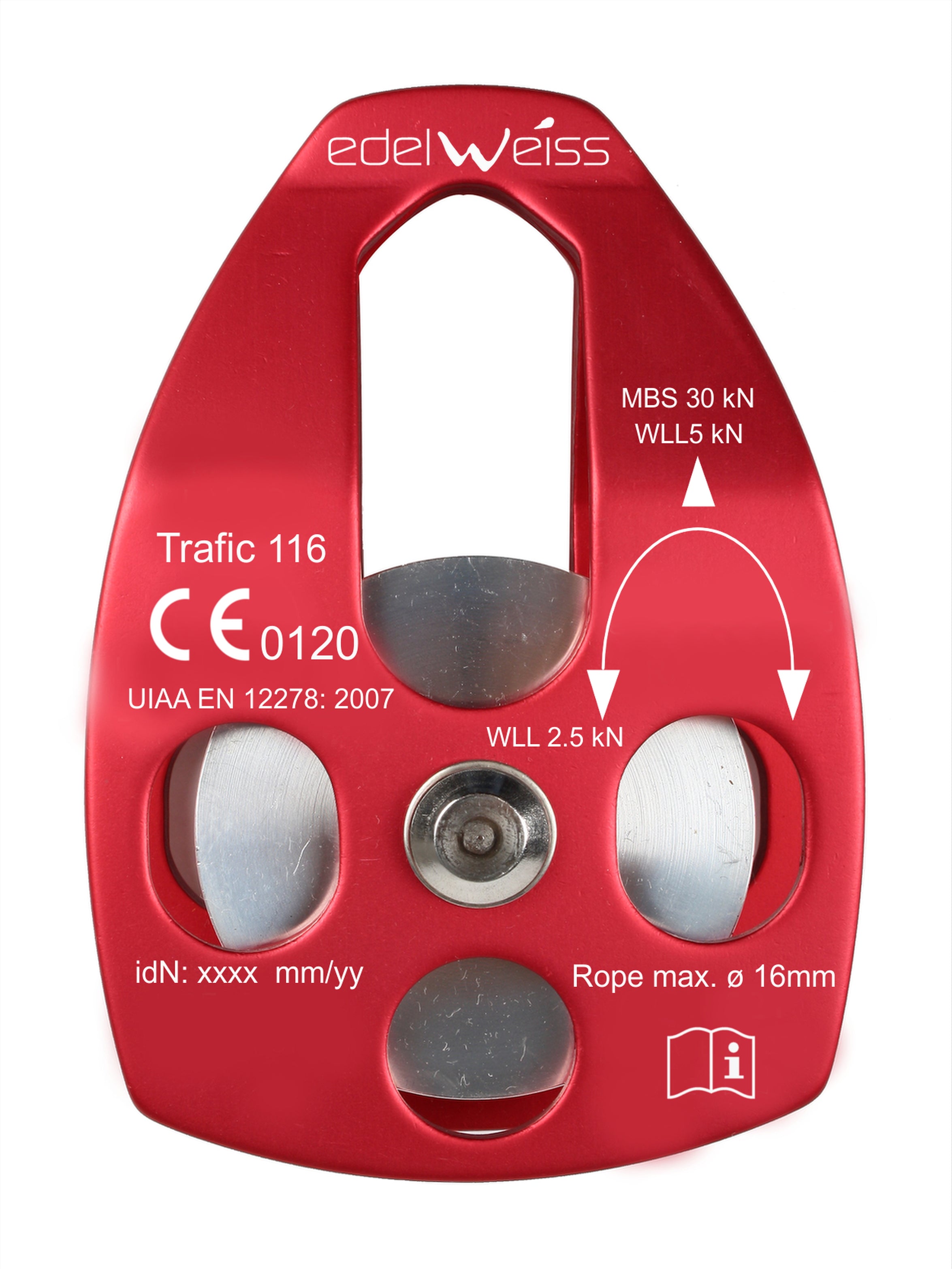

TRAFIC 116
Description:
TRAFIC 116 is a mobile plate single pulley designed for hauling systems and heavy loads (brass bearing), it accepts ropes up to 16mm.
User guide: Pulleys
Declaration of conformity: DC_TRAFIC 116_2023
Specifications:
| Height | 121 mm |
|---|---|
| Width | 82 mm |
| Material | Light Alloy |
| Sheave | 48 mm |
| Diameter | max. 16mm |
| Efficiency | N/A |
| Weight | 270 g |
| Breaking strength | 30 kN |
| Maximum workload | 2 x 2,5kN = 5kN |
| Standard | CE - EN 12278 - UIAA |
